Process of Metal injection molding
July 23, 2014
Metal injection molding (referred to MIM) is a new technology of powder metallurgy and plastic molding to combine metal parts,high-volume manufacturing of small rapid development of complex precision metal parts.

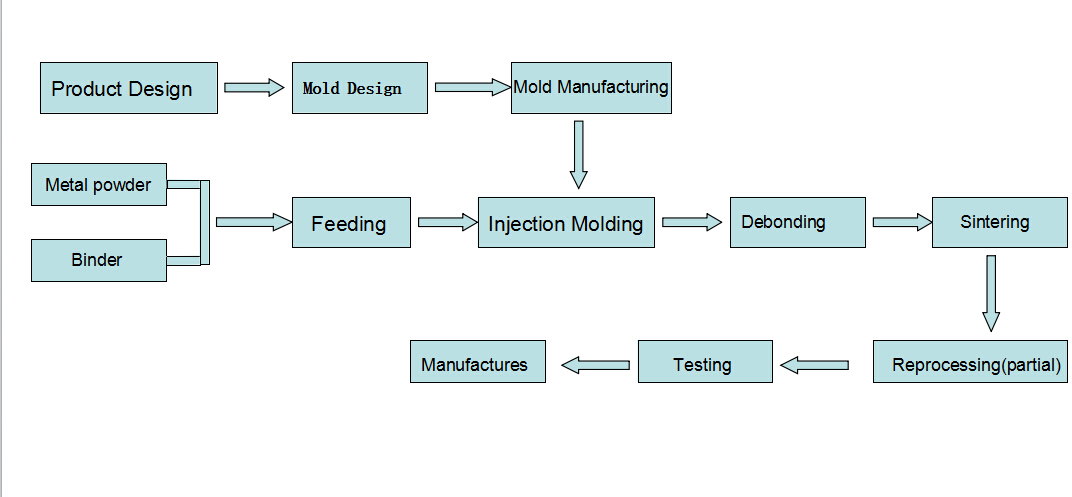

Production flow diagram of MIM as follows:
Flow chart of metal injection molding
| Mixing process |
Machine picture |
Product picture |
 |
 |
|
| Feeding: about 60% of metal powder mixed with 40% of binder into a homogeneous feed. | ||
 |
|
|
| Injection molding |  |
 |
| Injection molding: injection molding machine will feed into the injection molding process similar to injection molding.The shape and structure of the parts forming the mold. | ||
| |
|
|
| Debonding process |  |
 |
| Debonding: the use of physical or chemical process for removing parts of the binder components from the mixture of metal powder and a binder into a simple metal parts, the volume shrinkage, shape and structure unchanged. | ||
| |
|
|
| Sintering process |  |
 |
| Sintering: This process is the densification of the part, further contraction volume, shape and structure unchanged, when the relative density of ≥ 95%. | ||
